Mechanical temperature control and limitation device without auxiliary energy. The application ranges over the complete heat and process technology.
Due to the liquid-filled measuring systems and...
Related products
IP00

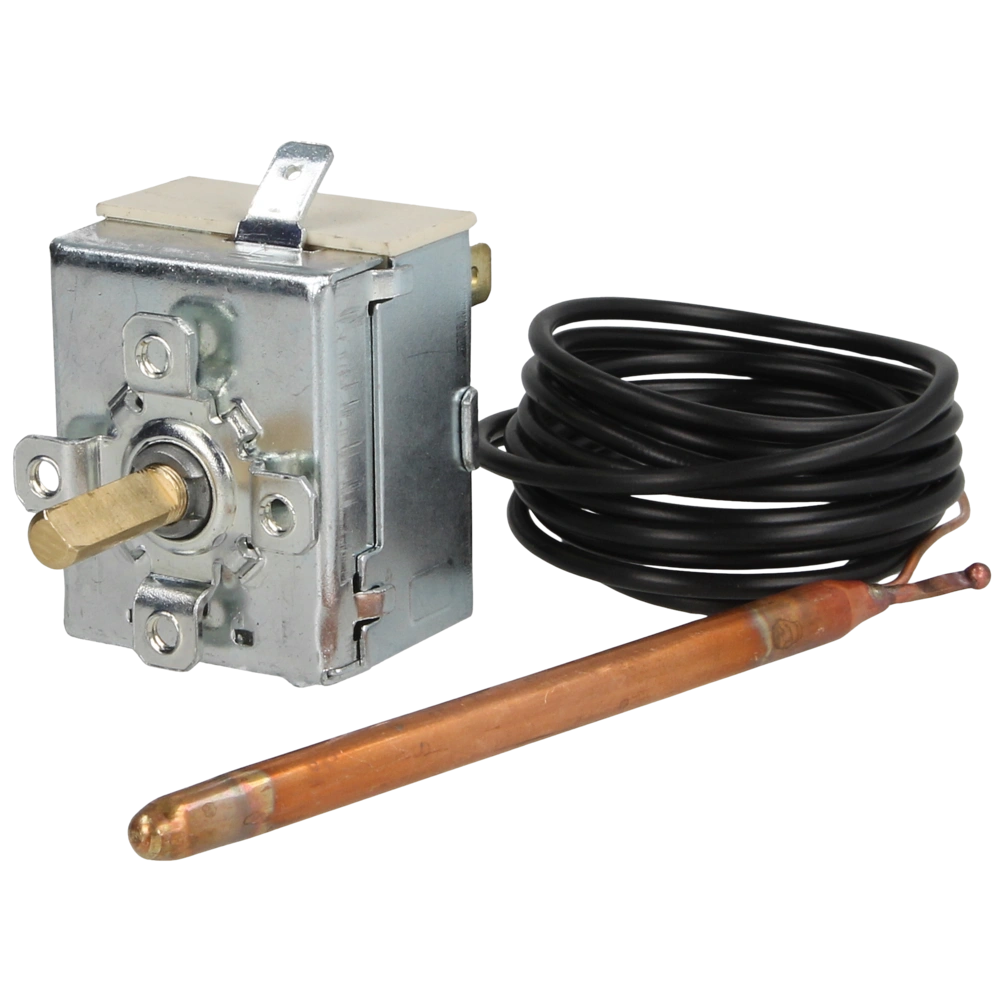

Mechanical temperature control and limitation device without auxiliary energy. The application ranges over the complete heat and process technology.
Due to the liquid-filled measuring systems and short response times, thermal processes in apparatus engineering, furnace construction, heating and air conditioning technology or any other industrial and domestic systems can be controlled. The controller can be used as an opener or closer. By means of a protective tube, the pressure-tight installation of the probe in different pressure vessels is possible.
The temperature controller has a setpoint axis for a rotary knob.
For more information see Downloads
| OEG no. | 211208090 |
| Temperature range [°C]: | 0 .. 90 |
| Capillary length [mm]: | 1,500 |
| Sensor length [mm]: | 95 |
| Sensor diameter [mm]: | 6.5 |
| Sensor type: | Cu |
| Switch contact: | Changeover |
| Voltage [V]: | 230 |
| Switching capacity [A]: | 16 |
| Protection type [IP]: |
IP00
|
| Manufacturer | Afriso |
| Weight [kg] | 0.1 |
| Notes |
IP00
|
| Customs tariff number | 90321020 (IT) |
