The insert is equipped with a rotary control, a 2way on-off switch, a soft-catch and a terminal for net disconnection devices, and it provides 2-wire connection (neutral conductor not required). Dimming...
All product informationDimmer

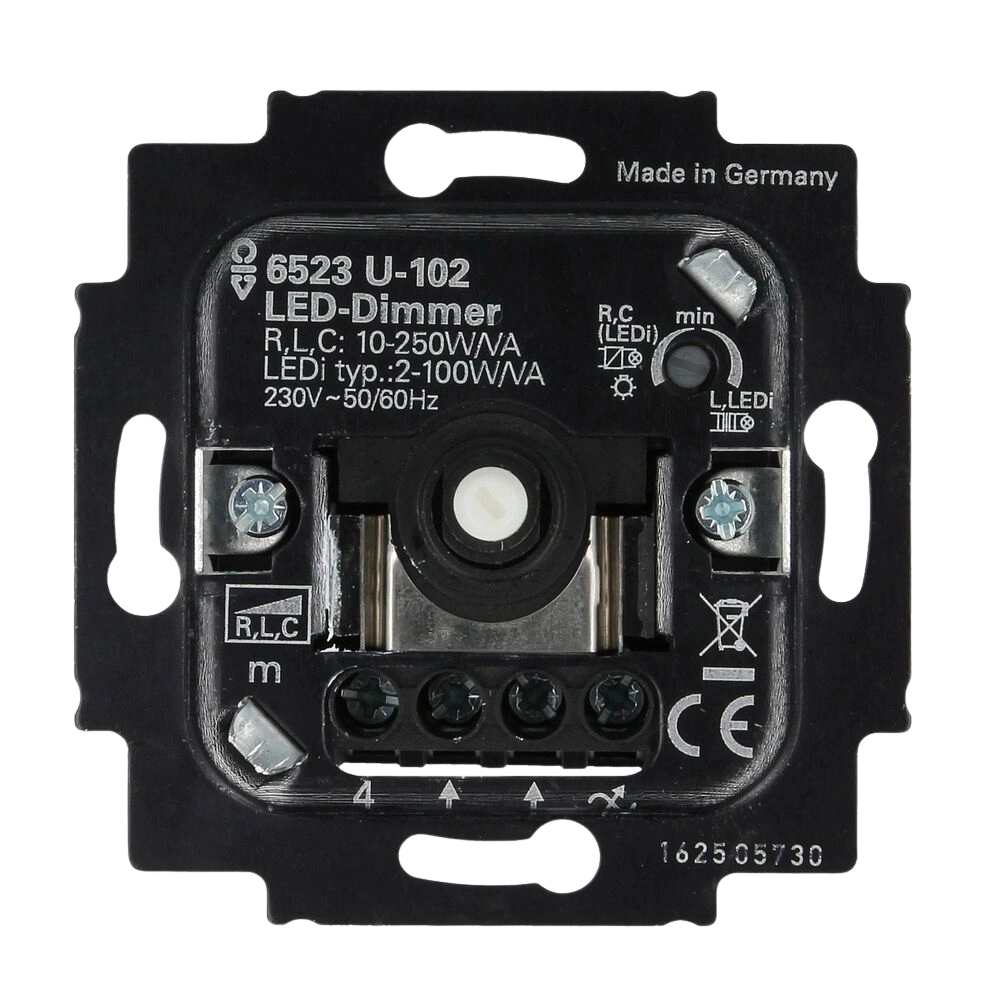

The insert is equipped with a rotary control, a 2way on-off switch, a soft-catch and a terminal for net disconnection devices, and it provides 2-wire connection (neutral conductor not required). Dimming can be controlled by a cover plate with neon lamp. (not included).
Suitable for:
For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional and electronic transformers and dimmable energy-saving halogen lamps.
Only in conjunction with standard flush-mounted boxes according to DIN 49073, Part 1, or Busch-Jaeger no. 3040 flush-mounted wallbox stonework, 3050 flush-mounted wallbox cavity wall or 3060 flush-mounted wallbox concrete.
Recommendation of the manufacturer:
Please use loads and types of one producer.
For more information see Downloads
OEG no. | 717001587 |

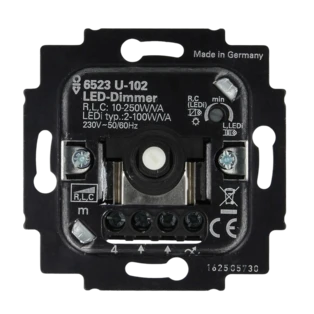

Model: | Rotary dimmer 2 - 100 W |
Output: | max. 100 W |
Voltage [V]: | 230 |
Application: | LED and electronic transformers |
Protection type [IP]: |
IP20 |
Temperature range [°C]: | 0 .. 35 |
Manufacturer | Busch-Jaeger |
Manufacturer number | 6523 U-102 |
EAN | 4011395212677 |
Weight [kg] | 0.16 |
Notes |
Dimmer |
Customs tariff number | 85365080 |
