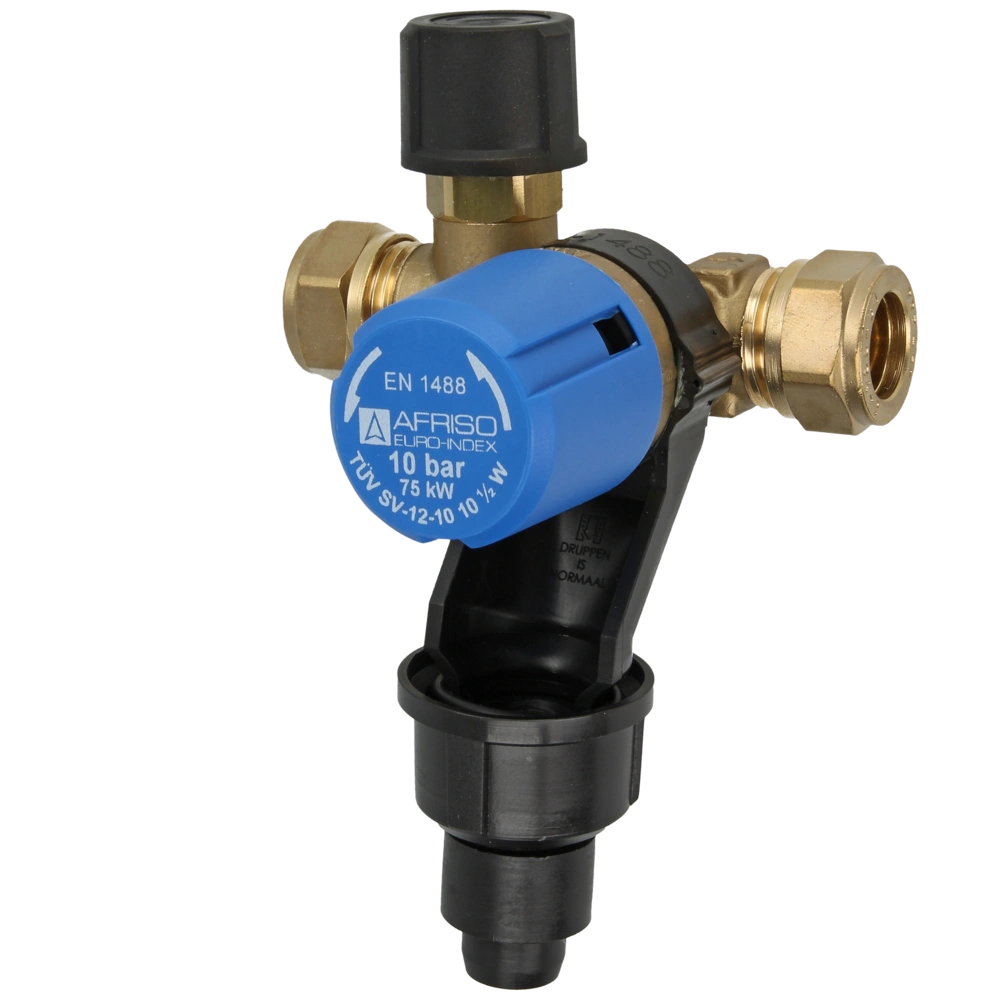

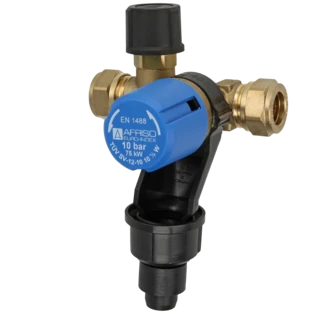

Boiler safety group assembly for protection against excessive pressure for sealed DHW systems and drinking water heaters. The combination fitting in straight form with safety relief valve consists of...
All product informationBoiler safety group assembly for protection against excessive pressure for sealed DHW systems and drinking water heaters. The combination fitting in straight form with safety relief valve consists of an isolating device, a check valve and a test screw. The connections are soldered screw connections on both ends.
For more information see Downloads
OEG no. | 512245430 |
Type: | BFK 12/10 |
Pressure [bar]: | 10 |
Total length [mm]: | 95 |
DIN: | 1988, 4753-1, 4109-1 |
Connection: | Ø 15 mm |
Type of connection: | Clamping ring |
kvs-value [m³/h]: | 2.2 |
Housing: | Brass |
Manufacturer | Afriso |
Manufacturer number | 77988 |
Weight [kg] | 0.36 |
Customs tariff number | 84818099 (NL) |
