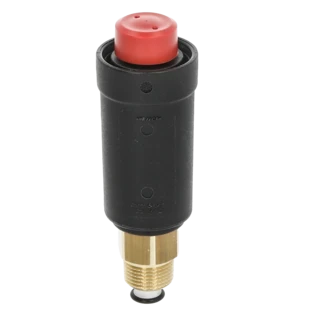

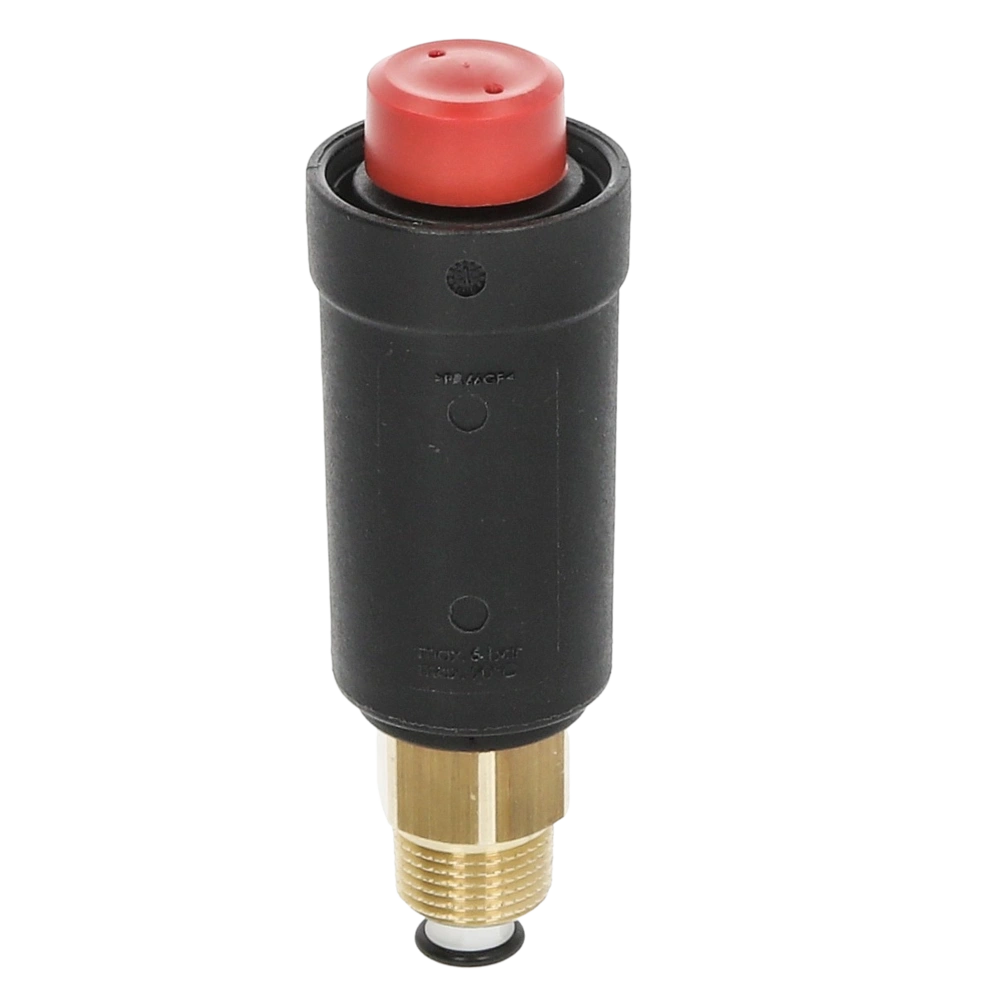

Automatic air vent Flovent 3/8" ET with mounting valve 27790
The automatic air vent in compact design is intended to be used for the automatic venting of closed heating systems. It is suitable for the media water and water-glycol mixtures with max. 50% glycol...
All product informationThe automatic air vent in compact design is intended to be used for the automatic venting of closed heating systems. It is suitable for the media water and water-glycol mixtures with max. 50% glycol content as well as media with an ethanol content of up to 30%.
For more information see Downloads
| OEG no. | 512234170 |
| Model: | Compact design |
| Type: | With mounting valve |
| Surface: | Plastic |
| Media temperature [°C]: | -10 .. 90 |
| Pressure max. [bar]: | 6 |
| Connection size [inch]: | 3/8 |
| Manufacturer | Flamco |
| Manufacturer number | 27790 |
| Also replaces |
|
| Weight [kg] | 0.23 |
| Customs tariff number | 84818079 |
Is er een maattekening van dit model?
Helaas is er geen maattekening. De hoogte zonder de aansluitschroefdraad is ongeveer 60 mm en de diameter op het dikste punt is 36 mm.
sont il disponible en montage 1/2. merci
Pour cet article la transition est de 1/4" à 3/8". Merci de consulter la référence Automatic air vent 1/2" ET with mounting valve.
You have to be logged in to ask a question
26/10/2020, 19:32:06 of: Mr Miranda edwin
goede ontluchter
snel geplaatst en werkt perfect
Very good heating system item
Very good heating system item and very good price
05/04/2017, 01:08:41 of: Mr Schuler Manuel
top
Super Preisleistung und Top Qualität
