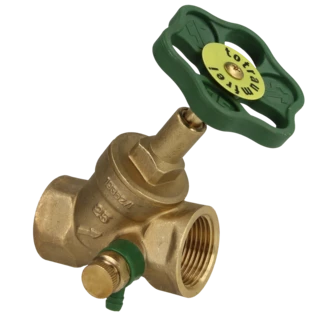

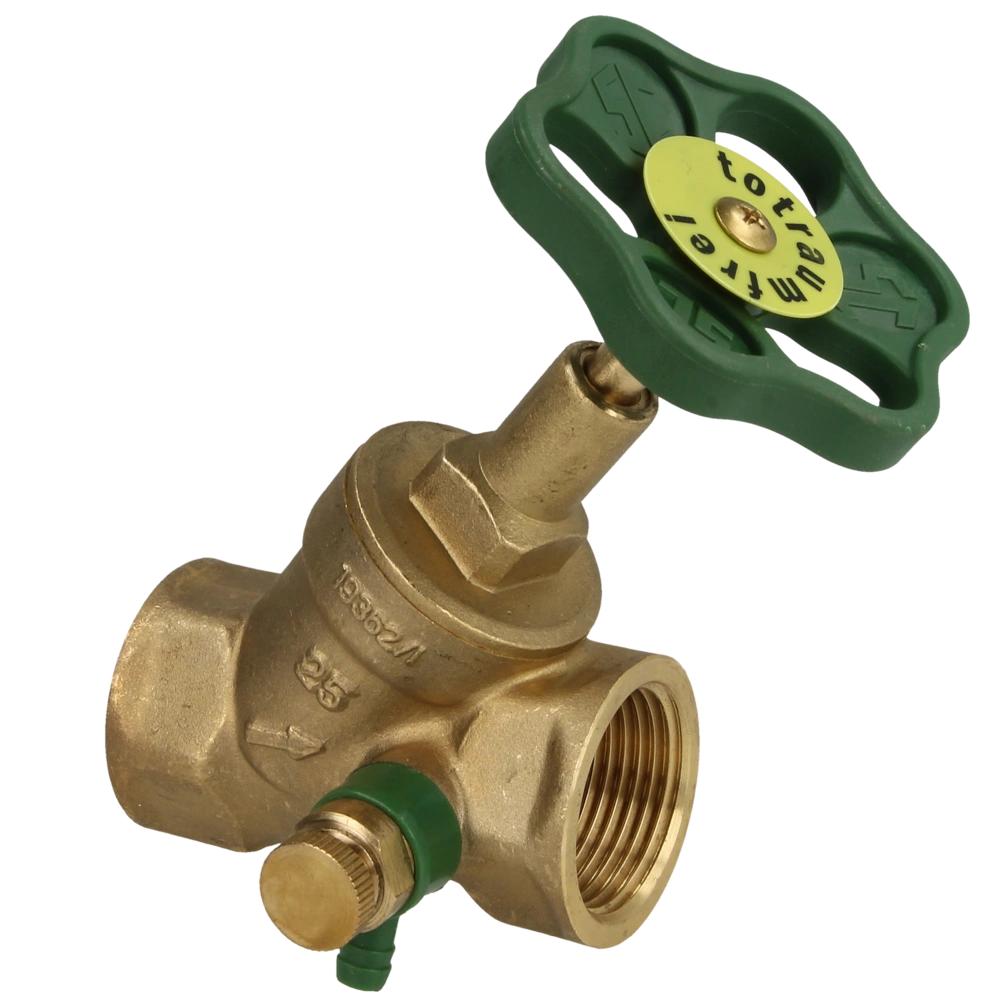

The angle-seat valve features a grease chamber without dead zone in the rising stem. It provides no room for stagnation water, germs or limescale and is therefore considered as legionella-safe.
The...
All product informationSuitable for drinking water
The angle-seat valve features a grease chamber without dead zone in the rising stem. It provides no room for stagnation water, germs or limescale and is therefore considered as legionella-safe.
The valve is mainly installed after the meter at the domestic water connection of the drinking-water installation in the direction of the flow. However, it can be used for both regulating or shutting off at any point of the water pipe. An arrow on the valve indicates the correct installation. Additionally, it has a small drain tap in flow direction intended for emptying the pipes.
The handwheel is made of tough, very hard and rigid plastic.
For more information see Downloads
OEG no. | 805001853 |
Type: | Rising stem |
Model: | With draining |
Connection size: | 1" |
Type of connection: | Female thread | Female thread |
Housing: | Brass |
Operating pressure max. [bar]: | 10 |
Operating temperature [°C]: | 90 |
Weight [kg] | 0.52 |
Notes |
Suitable for drinking water |
Customs tariff number | 84818079 |
