The energy-efficient air-handling unit ensures ventilation in flats, houses and commercial buildings. Heat recovery reduces heat losses caused by ventilation. Air exchange and humidity compensation are controllable...
All product informationSpare part for: | ||

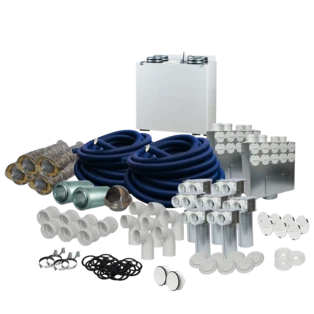

Central ventilation kit with heat recovery 110 - 160 m² |
CE
Delivery by forwarding agency

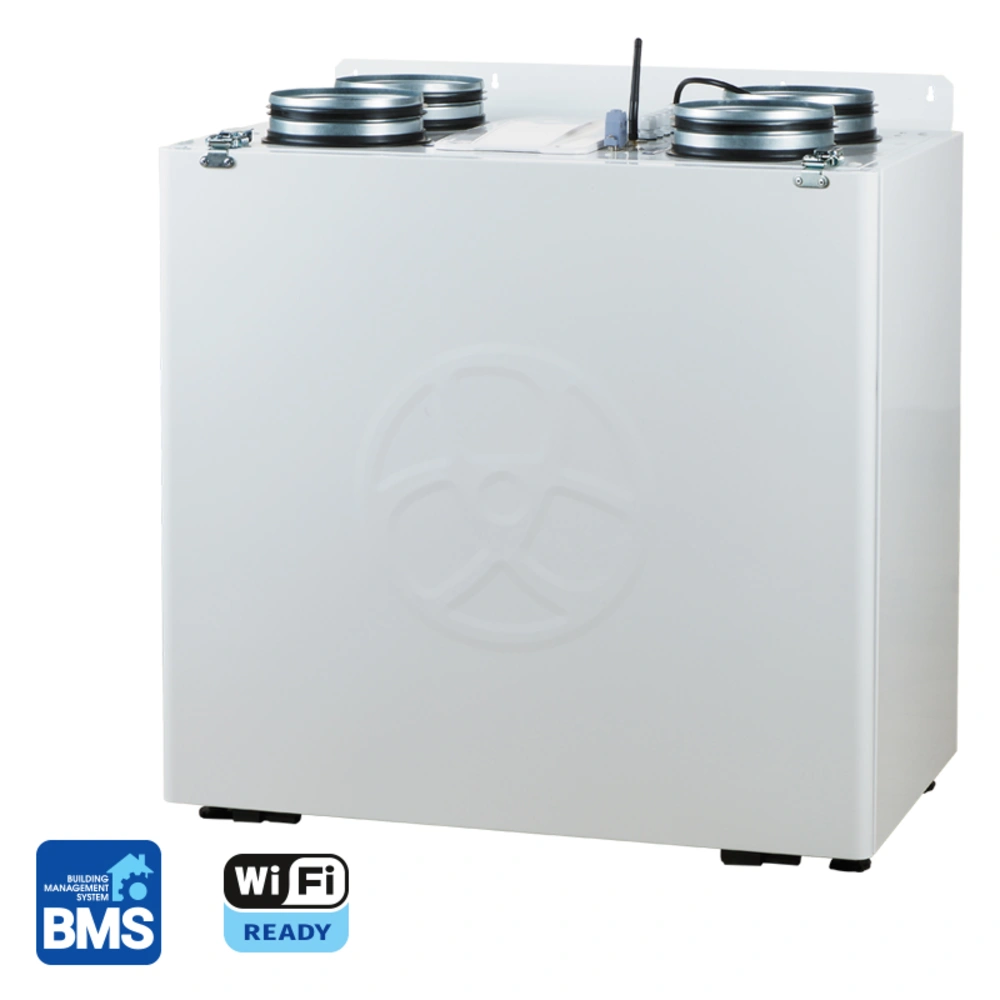

The energy-efficient air-handling unit ensures ventilation in flats, houses and commercial buildings. Heat recovery reduces heat losses caused by ventilation. Air exchange and humidity compensation are controllable. This creates a pleasant microclimate.
A supply air filter of filter class F7 and an exhaust air filter of filter class G4 ensure efficient air cleaning.
The system has a bypass damper which ensures natural room cooling by cool intake air in summer nights.
The unit has a large side flap for maintenance work.
Suitable for: | ||

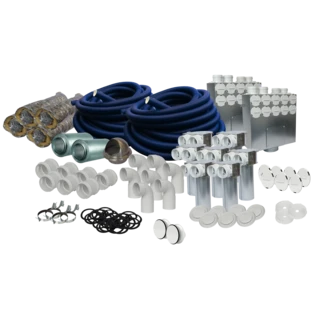

Air distribution kit for max. 110 m² | ||
Air distribution kit for max. 80 m² | ||
Air distribution kit for max. 160 m³ |
For more information see Downloads
OEG no. | 745000302 |
Output [W]: | 170 |
Mounting type: | Floor and wall mounting |
Voltage [V]: | 220 .. 240 |
Type: | KOMFORT ECSB350S21 |
Insulation: | 40 mm, mineral wool |
Connection: | 160 mm |
Filter class: | G4 / F7 |
Media temperature [°C]: | -25 .. 40 |
Air flow rate: | 415 m³/h |
Speed: | 3,200 rpm |
Length x Width x Height [mm]: | 730 x 583 x 760 |
Energy efficiency class for household appliances: | Ventilation unit |
Energy efficiency class until 2021: | A+ |
Manufacturer | Blauberg |
Manufacturer number | 8054471 |
EAN | 4058448054471 |
Weight [kg] | 53 |
Notes |
CE Delivery by forwarding agency |
Customs tariff number | 73229000 (UA) |
