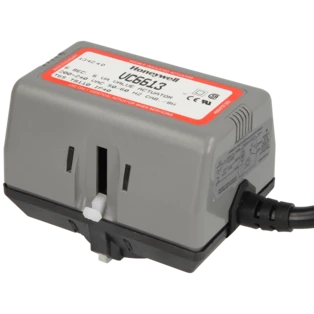

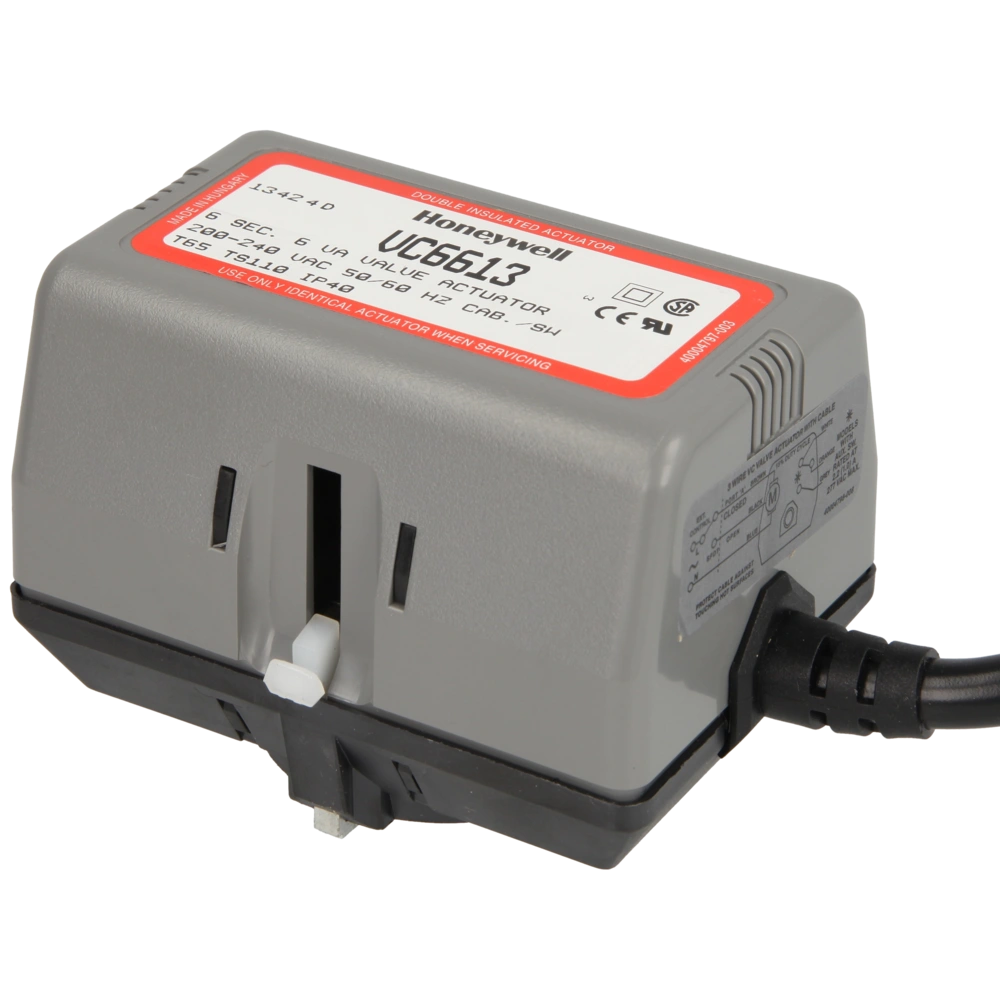

Energy-efficient motor for 2- and 3-way zone valves of the VC series, which does not require any further energy once the switch position has been reached. In case of a power failure, the current position remains...
Spare part for All product informationRelated products
CE
Resideo 5-year warranty
Energy-efficient motor for 2- and 3-way zone valves of the VC series, which does not require any further energy once the switch position has been reached. In case of a power failure, the current position remains. The actuator has an additional manual adjustment. When the motor is replaced, the water of the system does not need to be drained.
For the motor variant with MOLEX connector, motor and auxiliary switch voltage must have identical values. You should use the cable version for mixed voltages.
For more information see Downloads
| OEG no. | 512240044 |
| Connection: | Cable connection 6-core |
| Voltage [V]: | 230 |
| Switch contact: | EPU: single-pole switching |
| Type: | VC6613ZZ00 |
| Operating temperature [°C]: | 1 .. 95 |
| Operating pressure max. [bar]: | 20 |
| Protection type [IP]: |
 IP40
|
| Running time [s]: | 7 |
| Pumped medium: | Water with up to 50 % glycol, Water |
| Manufacturer | Honeywell |
| Manufacturer number | VC6613ZZ00/U |
| Weight [kg] | 0.42 |
| Notes |
CE
Resideo 5-year warranty
|
| Customs tariff number | 85011093 (CA) |
