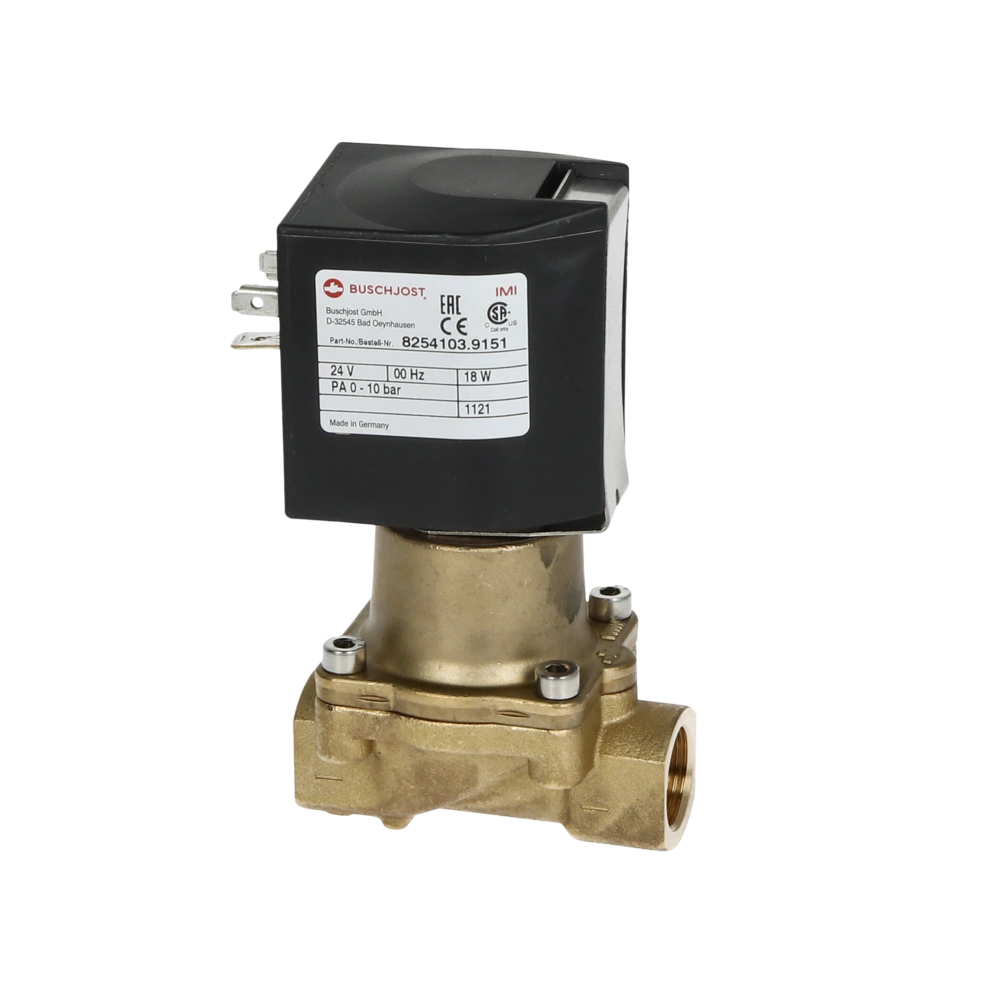

3/8" solenoid valve with FPM seal 8254103.9151.0240
OEG no.: 113123760
OEG no. : 113123760
Compact solenoid valve with closing damping and FPM seal for oils and fuels. The valve is force pilot operated without differential pressure and, therefore, suitable for vacuum and systems with low or fluctuating pressure conditions.
All product information
PU
CE
Compact solenoid valve with closing damping and FPM seal for oils and fuels. The valve is force pilot operated without differential pressure and, therefore, suitable for vacuum and systems with low or fluctuating pressure conditions.
For more information see Downloads
| OEG no. | 113123760 |
| Model: | Force-controlled |
| Type: | 2-way valve |
| kvs-value [m³/h]: | 3.0 |
| Connection size: | 3/8" IT |
| Type of seal: | FPM |
| Media temperature [°C]: | -5 .. 110 |
| Ambient temperature [°C]: | -10 .. 50 |
| Switch-on time: | 100% |
| Viscosity: | 0 .. 25 mm²/s |
| Opening characteristics: | Normally closed (NC) |
| Operating pressure [bar]: | 0 .. 10 |
| Medium : | Oil, Synthetic oil, Fuel |
| Tension: | 24V DC |
| Manufacturer | Buschjost |
| Manufacturer number | 8254103.9151.0240 |
| Weight [kg] | 0.43 |
| Notes |
PU
CE
|
| Customs tariff number | 84818087 |
