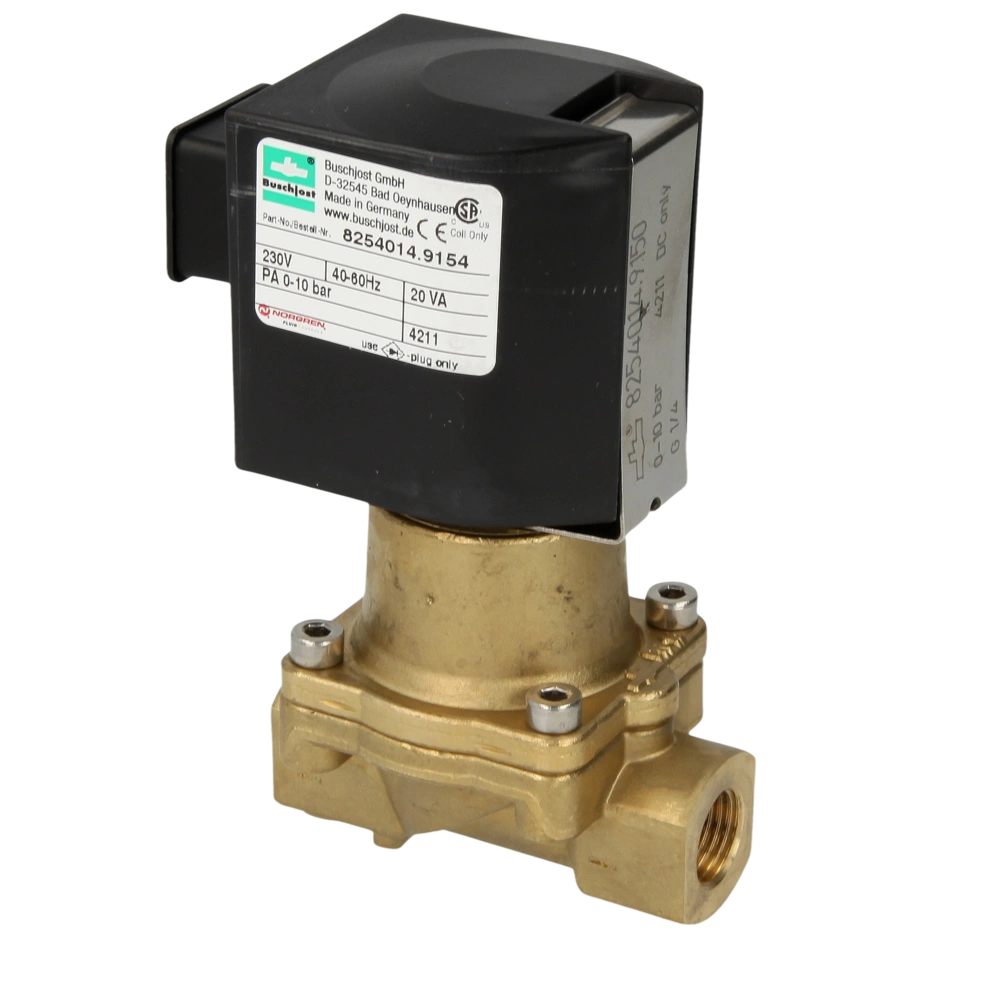

1/4" solenoid valve with EPDM seal 8254014.9154.23049
OEG no.: 113123655
OEG no. : 113123655
Compact solenoid valve with closing damping and EPDM seal for water, hot water and vapour. The valve is force pilot operated without differential pressure and, therefore, suitable for vacuum and systems...
All product information
PU
CE
Compact solenoid valve with closing damping and EPDM seal for water, hot water and vapour. The valve is force pilot operated without differential pressure and, therefore, suitable for vacuum and systems with low or fluctuating pressure conditions.
For more information see Downloads
| OEG no. | 113123655 |
| Type: | 2-way valve |
| kvs-value [m³/h]: | 1.9 |
| Connection size: | 1/4" IT |
| Media temperature [°C]: | -5 .. 110 |
| Type of seal: | EPDM |
| Ambient temperature [°C]: | -10 .. 50 |
| Switch-on time: | 100% |
| Viscosity: | 0 .. 25 mm²/s |
| Opening characteristics: | Normally closed (NC) |
| Operating pressure [bar]: | 0 .. 10 |
| Medium : | Water, Hot water, Vapour |
| Tension: | 230V |
| Manufacturer | Buschjost |
| Manufacturer number | 8254014.9154.23049 |
| Also replaces |
|
| Weight [kg] | 1.32 |
| Notes |
PU
CE
|
| Customs tariff number | 84818087 |
