Compact solenoid valve with closing damping and EPDM seal for water, hot water and vapour. The valve is actuated indirectly and requires a minimal differential pressure for opening. It provides a high...
All product informationPU
CE

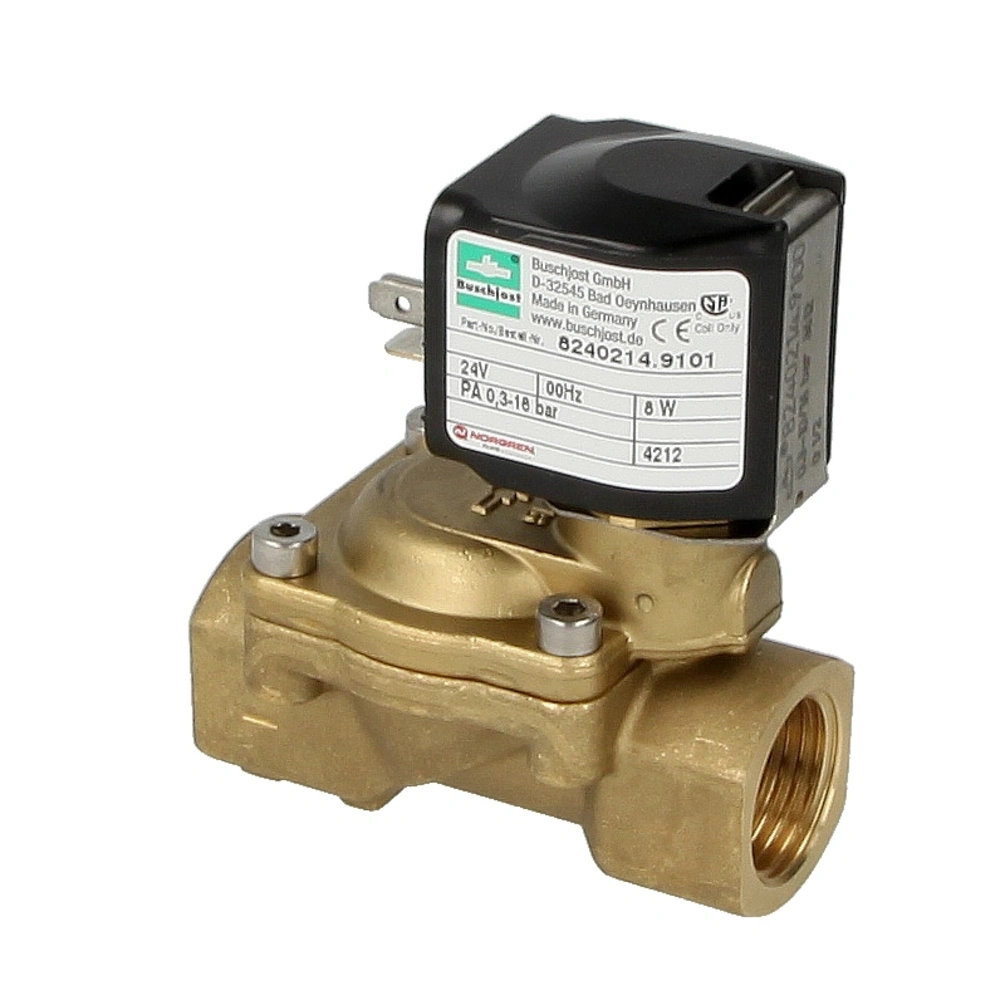

Compact solenoid valve with closing damping and EPDM seal for water, hot water and vapour. The valve is actuated indirectly and requires a minimal differential pressure for opening. It provides a high flow rate, is resistant to pressure and has a lower power consumption than directly activated solenoid valves.
For more information see Downloads
OEG no. | 113124170 |
Model: | Pilot-controlled |
Type: | 2-way valve |
kvs-value [m³/h]: | 3.8 |
Connection size: | ½" IT |
Media temperature [°C]: | -5 .. 110 |
Type of seal: | EPDM |
Ambient temperature [°C]: | -10 .. 50 |
Switch-on time: | 100% |
Viscosity: | 0 .. 25 mm²/s |
Opening characteristics: | Normally closed (NC) |
Operating pressure [bar]: | 0.1 .. 16 |
Differential pressure [bar]: | 0.3 .. 2 |
Medium : | Water, Hot water, Vapour |
Tension: | 24V DC |
Manufacturer | Buschjost |
Manufacturer number | 8240214.9101.0240 |
Weight [kg] | 0.1 |
Notes |
PU CE |
Customs tariff number | 84818087 |
